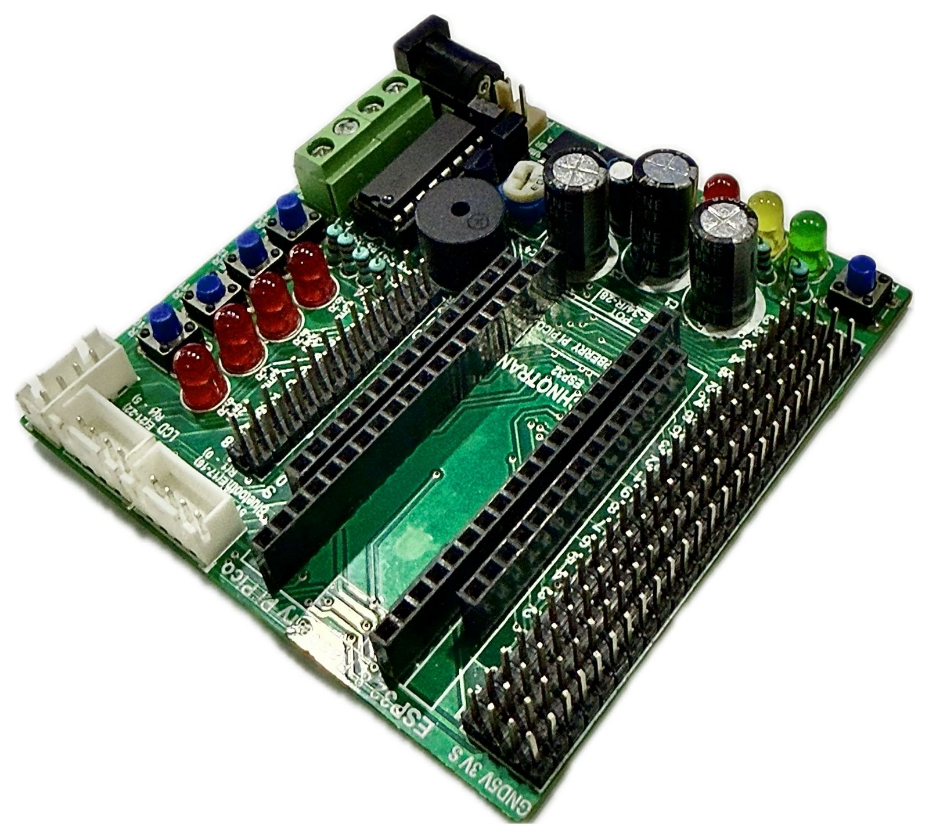

Technotran ESP32 and Raspberry Pi Pico Shield

The Technotran ESP32 + Raspberry Pi Pico Shield is a multifunctional development shield that brings together the capabilities of ESP32 and Raspberry Pi Pico on one board. It features dedicated pin headers for each microcontroller, allowing seamless switching or integration between the two platforms.

This shield comes equipped with 4 push buttons, 4 status LEDs, a buzzer, a motor driver, a Bluetooth header, and an I2C LCD port, making it ideal for IoT, robotics, automation, and learning projects. It supports 12V DC power input and features 3.3V, 5V, and 12V power indicator LEDs to easily monitor voltage status. Multiple GND, 5V, and 3.3V pin lines ensure smooth integration with sensors and actuators.

Features

• Dual compatibility: ESP32 and Raspberry Pi Pico with separate pin headers.
• Integrated motor driver for DC motor control.
• 4 tactile push buttons for custom input functions.
• 4 status LEDs for visual output.
• Onboard buzzer for alerts and notifications.
• 12V DC power input with 3.3V, 5V, and 12V indicator LEDs.
• Multiple GND, 5V, and 3.3V pin lines for peripheral connections.
• Dedicated I2C LCD port and Bluetooth header.
• Ideal for IoT, robotics, and embedded systems development.

Specifications
